Architecture & Deployment Models

Last updated 2026-04-27

Architecture & Deployment Models

uControl Insight supports multiple deployment topologies depending on your environment — from a single on-premises server to a cloud-hosted control plane with distributed on-premises workers.

Core Components

Component	Description	Technology
Control Plane	Central web application — hosts the UI, REST API, normalization pipeline, Aha Engine, and scheduler. Manages all asset data and discovery orchestration.	Java 21, Spring Boot 3.3, Tomcat 10, MariaDB 10.5+
MariaDB Database	Stores all asset inventory, relationships, identifiers, discovery runs, credentials (AES-256-GCM encrypted), audit logs, and flow data.	MariaDB 10.5+ or MySQL 8.0+
Worker Agent (optional)	On-premises agent deployed at remote sites. Executes discovery scans locally and streams results back to the control plane over HTTPS. All traffic is outbound — no inbound ports required at the remote site.	Java 21, Spring Boot, embedded H2 database
Flow Collector (optional)	Receives NetFlow v5/v9 and IPFIX UDP packets from routers/switches. Can run standalone, embedded in the control plane, or as part of a worker agent.	Netty UDP listener

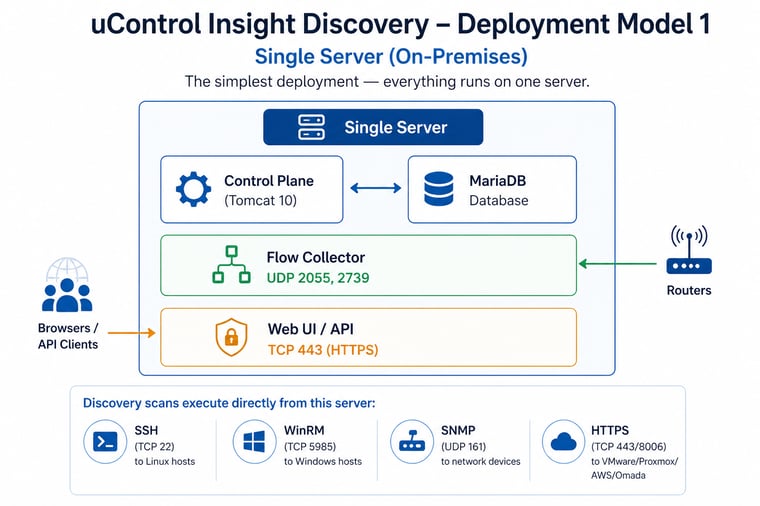

Deployment Model 1: Single Server (On-Premises)

Best for: Small to medium environments (up to 5,000 assets), single site, simple setup.

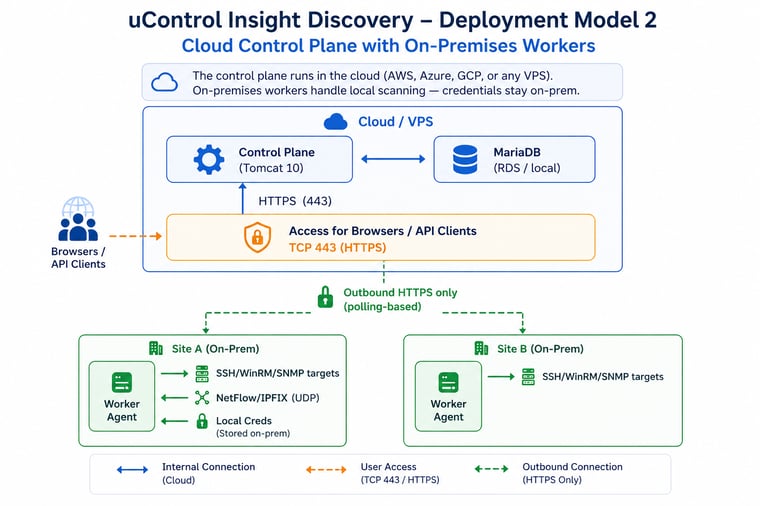

Deployment Model 2: Cloud Control Plane + On-Premises Workers

Key benefits:

Workers initiate all connections (outbound HTTPS only) — no inbound firewall rules needed at remote sites
Credentials are stored in the worker's encrypted local H2 database — they never leave the site
Flow data is batched and sent to the control plane via HTTP POST
Multiple sites supported — each worker is scoped to a site label

Best for: Multi-site organisations, cloud-first strategy, environments where credentials must stay on-premises.

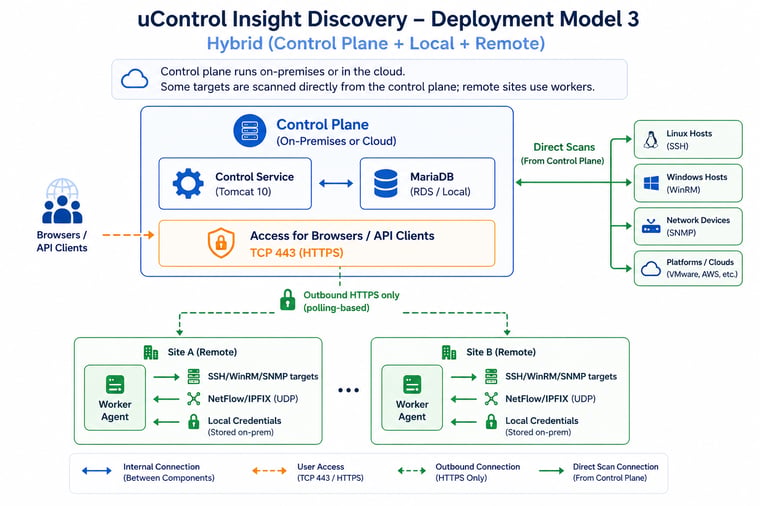

Deployment Model 3: Hybrid (Control Plane + Local + Remote)

Control plane runs on-premises or in the cloud. Some targets are scanned directly from the control plane; remote sites use workers.

Best for: Organisations with a mix of local and remote infrastructure, or gradual migration to cloud.

Firewall Rules

Control Plane Server

Direction	Port	Protocol	Source / Destination	Purpose
Inbound	443 (or 8180)	TCP	Browsers, API clients, workers	Web UI, REST API, worker polling
Inbound	2055	UDP	Network routers/switches	NetFlow v5/v9 collection (if local collector)
Inbound	4739	UDP	Network routers/switches	IPFIX collection (if local collector)
Outbound	22	TCP	Linux/UNIX targets	SSH discovery (if scanning directly)
Outbound	5985	TCP	Windows targets	WinRM discovery (if scanning directly)
Outbound	161	UDP	Network devices	SNMP discovery (if scanning directly)
Outbound	443	TCP	VMware/Proxmox/AWS/Omada	API-based discovery (if scanning directly)
Outbound	8006	TCP	Proxmox VE hosts	Proxmox API (if scanning directly)
Outbound	3306	TCP	MariaDB server	Database (if external DB)

Worker Agent (On-Premises)

Direction	Port	Protocol	Source / Destination	Purpose
Outbound	443	TCP	Control Plane	HTTPS polling, result upload, flow batch upload
Outbound	22	TCP	Linux/UNIX targets	SSH discovery
Outbound	5985	TCP	Windows targets	WinRM discovery
Outbound	161	UDP	Network devices	SNMP discovery
Outbound	443	TCP	VMware/Proxmox/Omada	API-based discovery
Outbound	8006	TCP	Proxmox VE hosts	Proxmox API
Inbound	2055	UDP	Network routers/switches	NetFlow collection (if flow collector enabled)
Inbound	4739	UDP	Network routers/switches	IPFIX collection (if flow collector enabled)
Inbound	8443	TCP	Local browser (optional)	Worker local management UI

Key point: Workers require no inbound rules for core operation — they poll the control plane outbound. Inbound rules are only needed if you enable the flow collector or local management UI on the worker.
